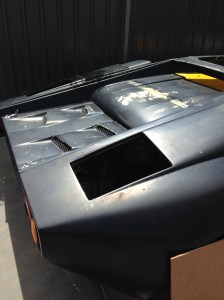

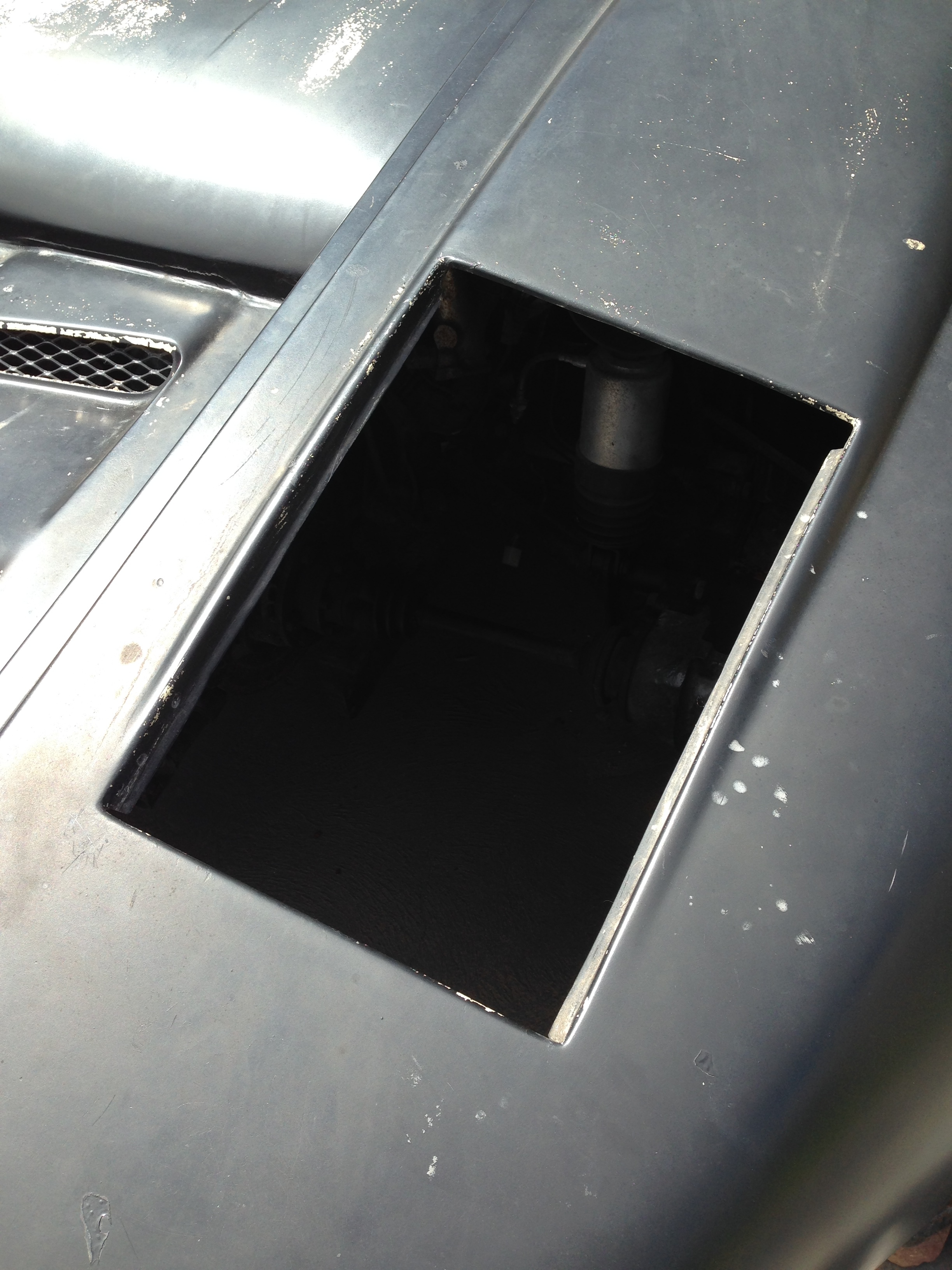

On the back wheel arches of my kit car are a couple of gaping holes where air intakes are meant to go. None actually came with it, so I thought I’d use the opportunity to experiment with carbon fibre and see if I could make some.

IMG_2068 IMG_2067

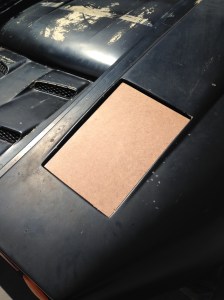

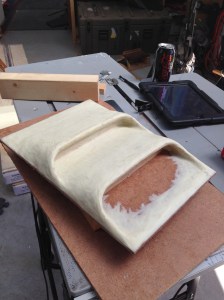

I had an idea in mind for a shape, which would be similar to the intakes on the engine cover. First step was to make a template of the intake to take a mould from. I started with a thin piece of melamine wood cut to the size of the inside of the intake hole. From there, I attached a couple of bits of wood where I wanted the scoops to be, and then start using sculpting clay to form the template.

IMG_2069IMG_2072IMG_2074 IMG_2075IMG_2081IMG_2084

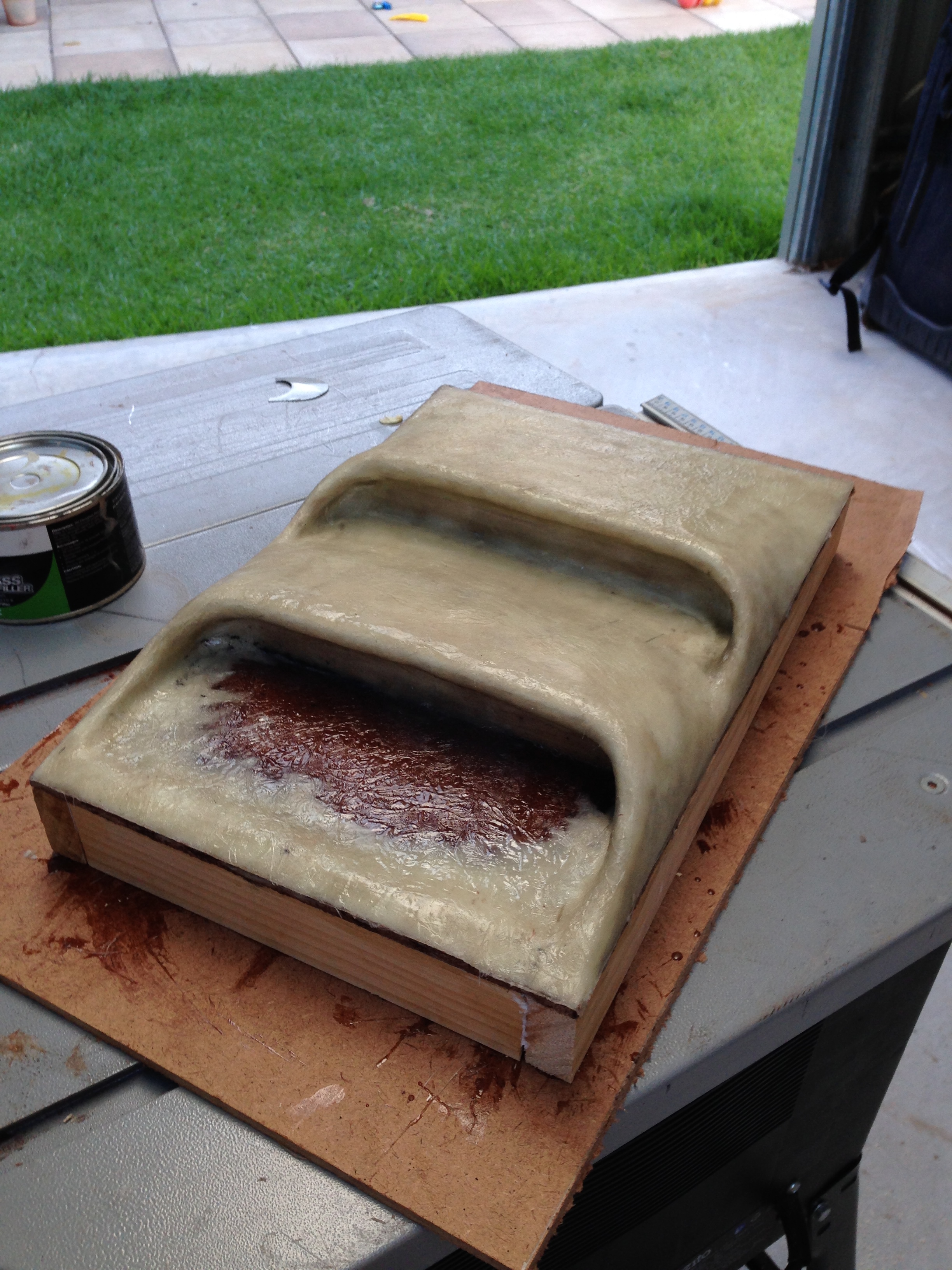

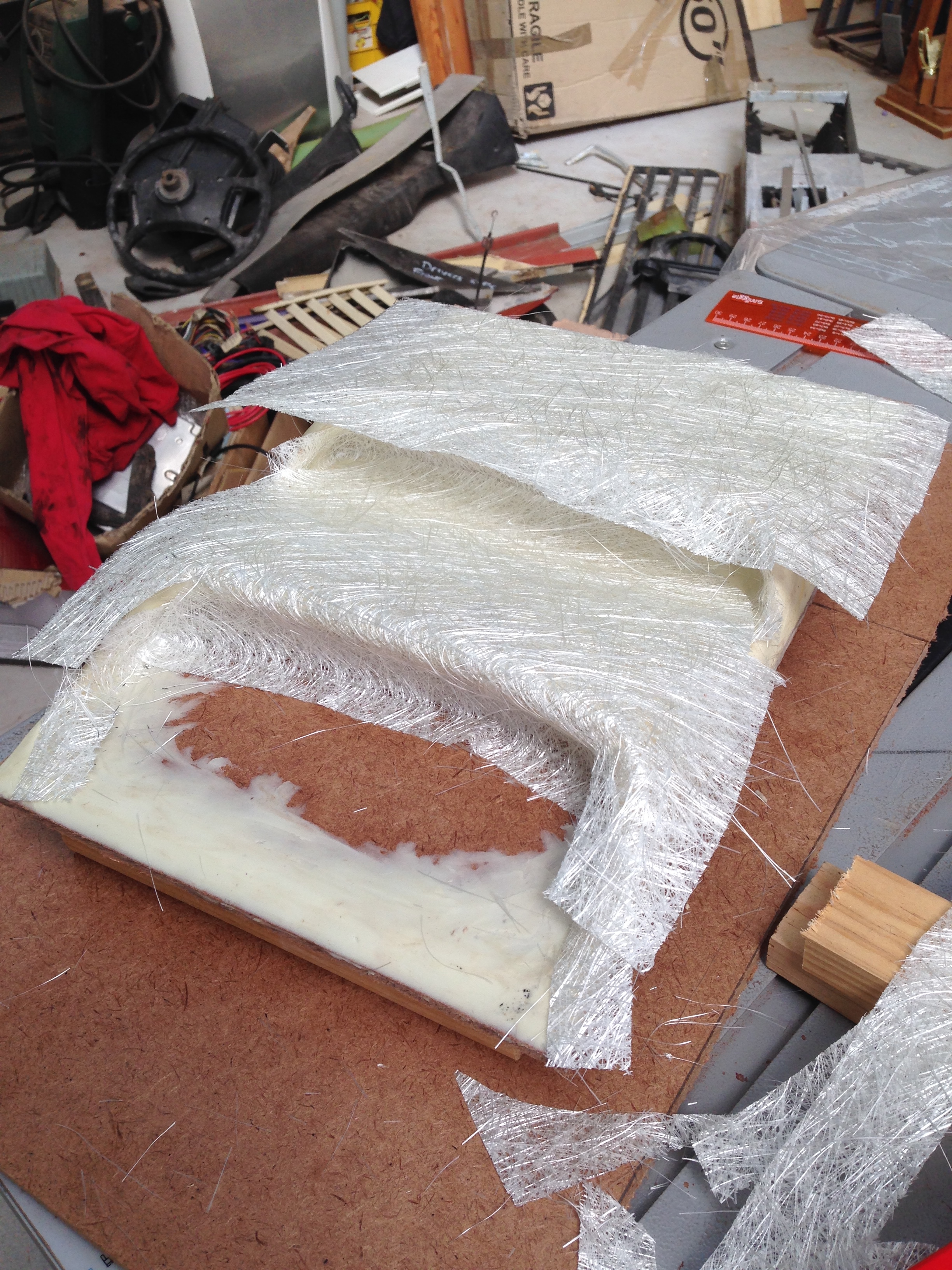

At the stage where I was happy with the shape of the scoop, I lay a thin shell of fibreglass over the top of it.

IMG_2085 IMG_2086IMG_2087IMG_2093

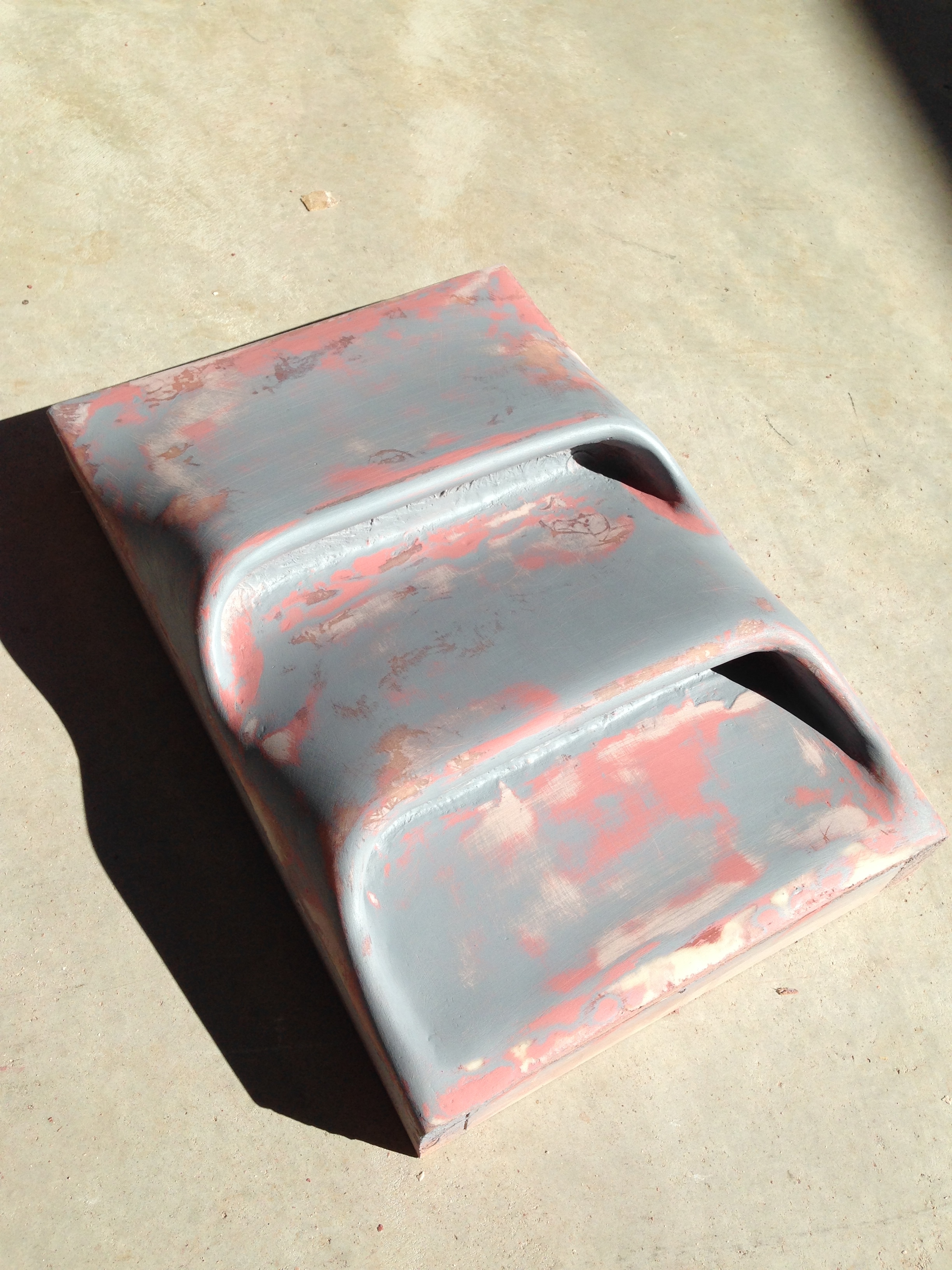

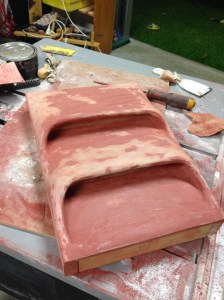

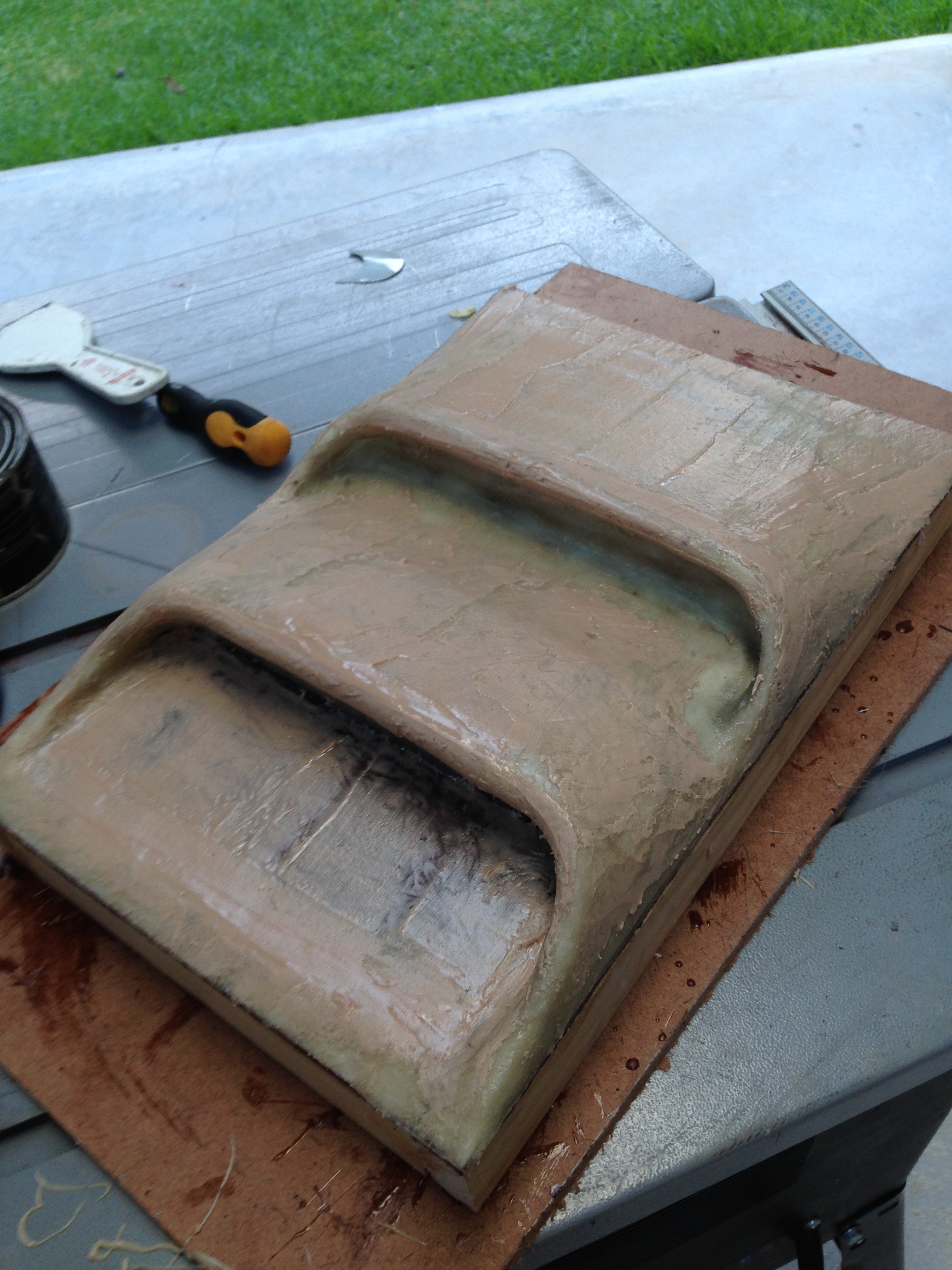

With the shell of fibreglass cured, I then went on to achieve a smooth surface profile with layers of filler and lots of sanding in between.

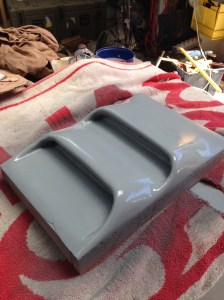

Once I had it at the stage I was happy with, I hit it with a final coat of primer filler and wet sanded it to 2000 grit. Knowing what I know now, I would have gone on and painted the template with a coat of gloss enamel. The reason for this is that a bunch of the primer ended up coming off on the gel coat, but more on that below.

IMG_2120 IMG_2119

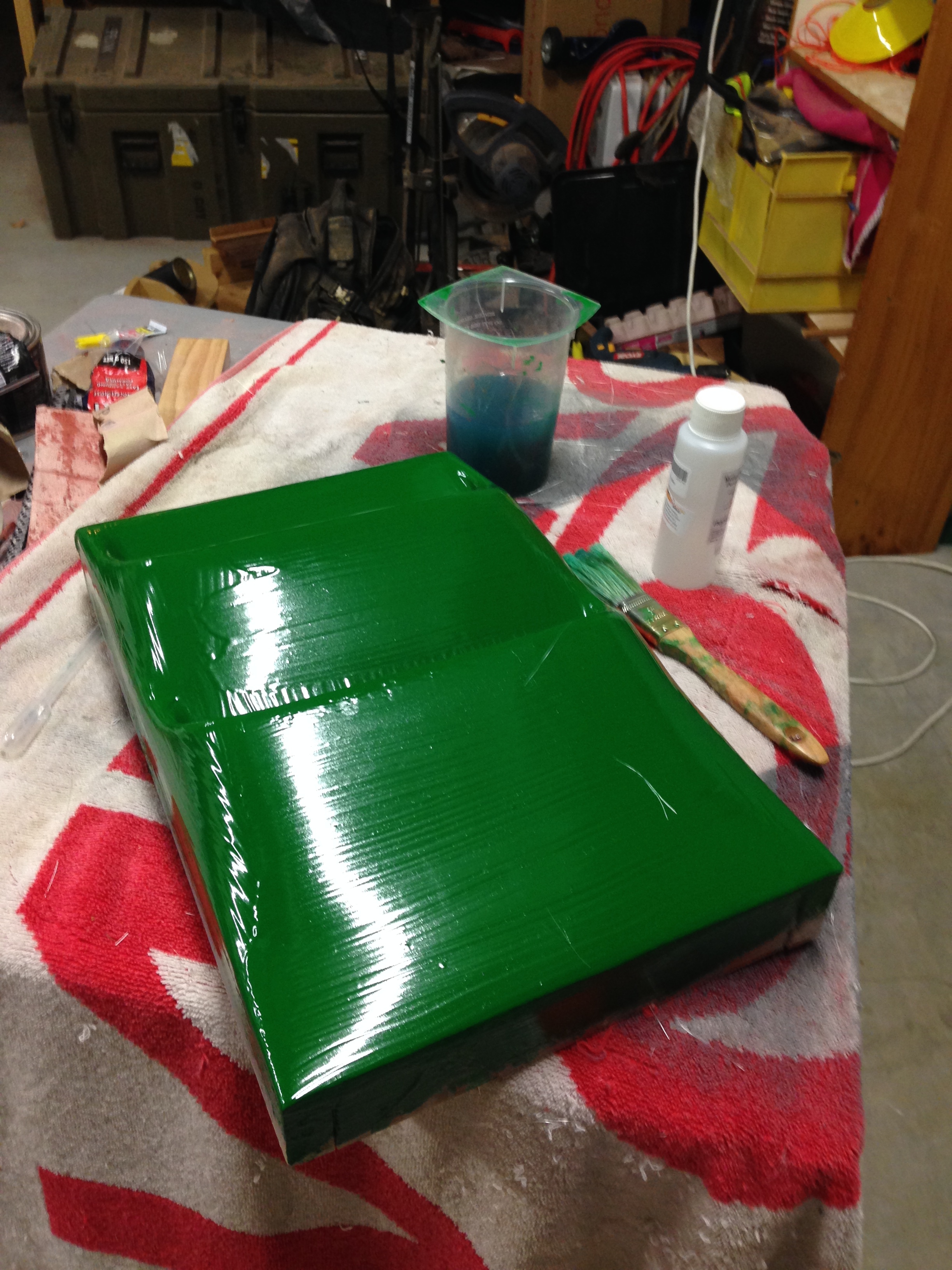

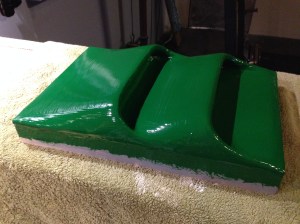

Next came 5 coats of release wax, and then the tooling gel coat.

IMG_2123 IMG_2122

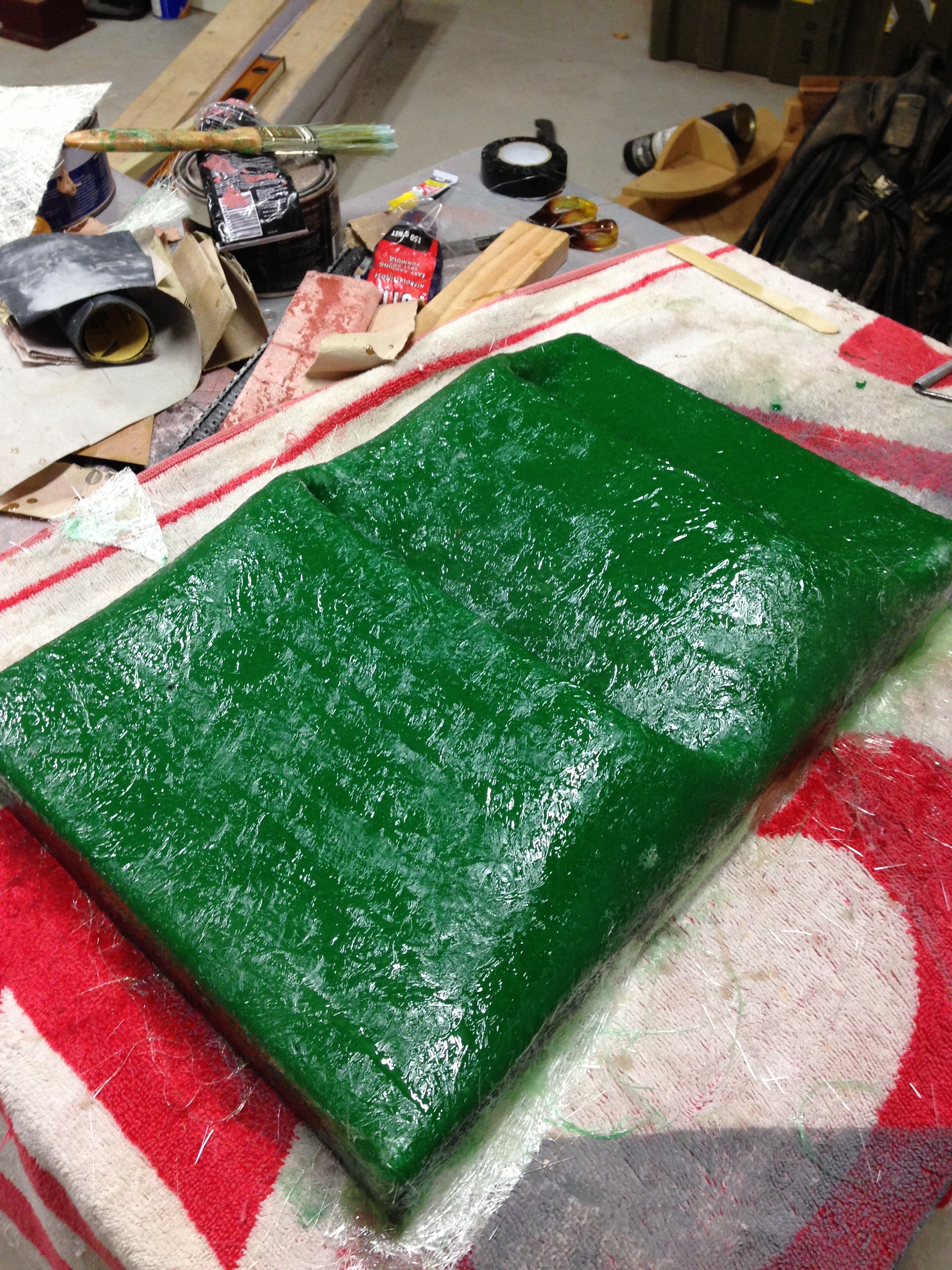

Once the gel coat was dry, I applied two layers of fibreglass to complete the actual mould that I would go on to use for the carbon fibre.

IMG_2125 IMG_2124

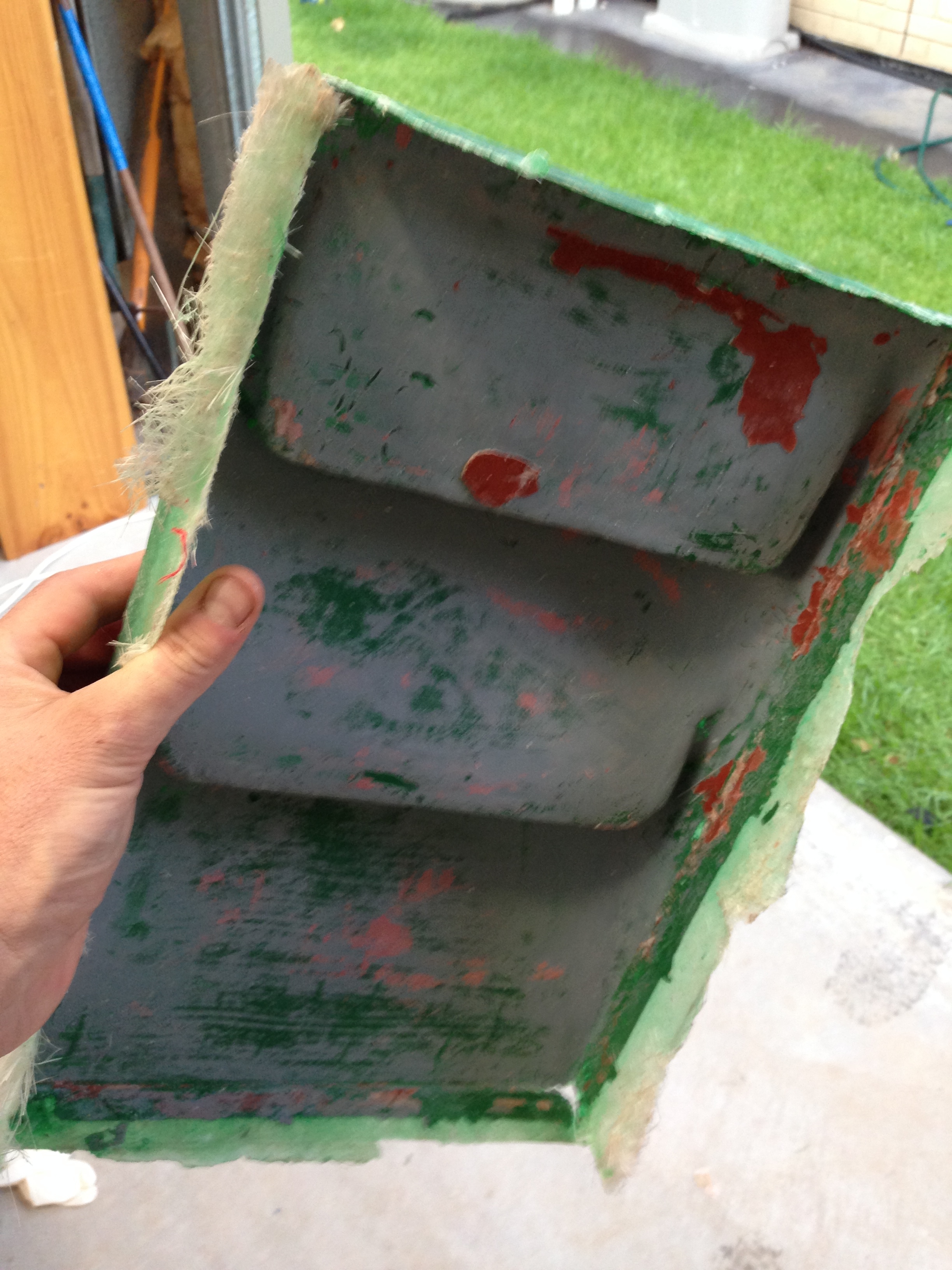

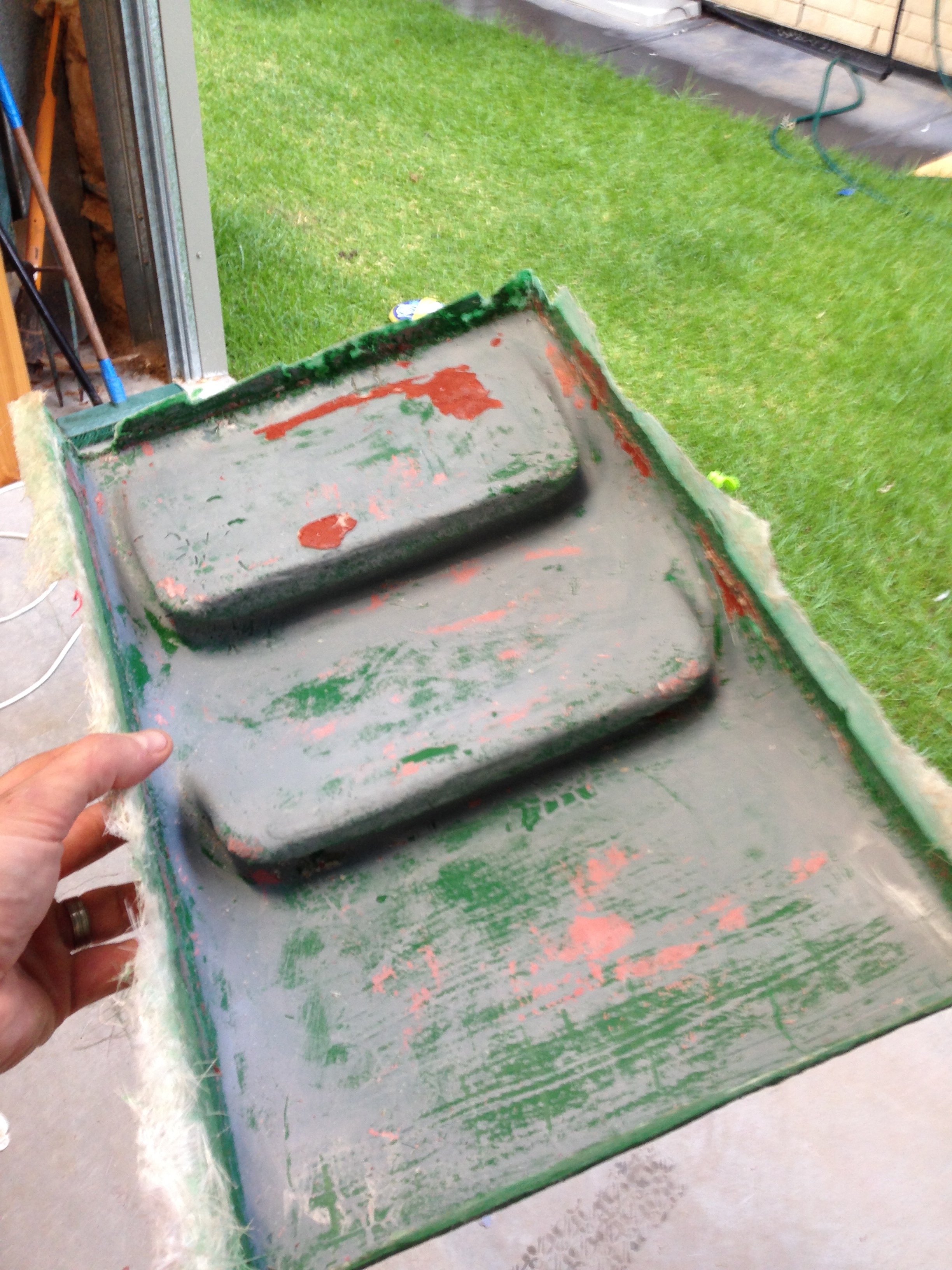

As I mentioned above, when I went to separate the template from the mould I had all sorts of trouble with the two sticking together. I ended up destroying the template removing the mould, and as seen below, the mould eventually came off with a bunch of primer and putty stuck to it.

IMG_2129 IMG_2130

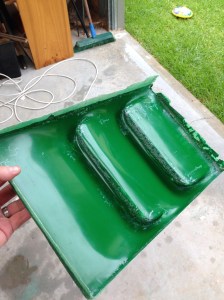

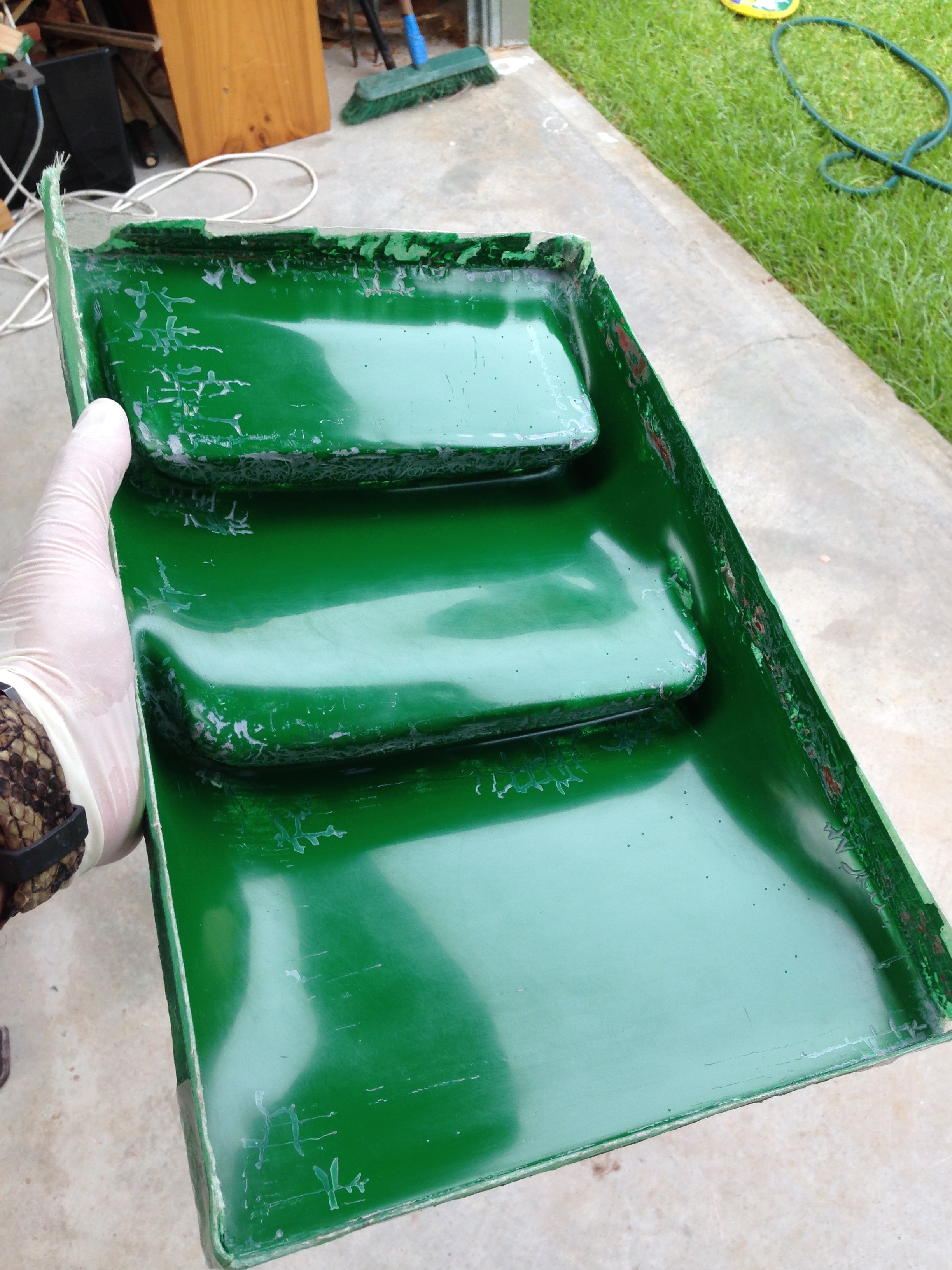

After sanding I came up with a finished mould.

IMG_2133 IMG_2132 IMG_2131

Next comes the carbon fibre! Cheers for looking, dan.
